Axol Bioscience Science Scholarship  recipient, Nataly Martynyuk, is a PhD student at the Brain Repair Centre, Department of Clinical Neurosciences, University of Cambridge, UK. Her research focuses on the actions of alpha-chimerins in mechanisms relevant to dendritic spine formation and neurodegeneration. Nataly reviews the evolution of astrocyte research, their biological form and function, and the role they play in human consciousness and memory formation.

The binding problem

Recently, neuroscience has provided some exciting progress in unraveling an age-old mystery of consciousness by providing ways to measure properties of neurons. However, this approach soon faced an obstacle called the binding problem, or lack of a neuronal substrate that would combine all information from numerous highly specialized neuronal areas into a seamless, succinct picture of the world we are all internally familiar with. Some theories proposed the existence of neuronal circuits storing memory in their particular arrangements (1–3). But who is the puppeteer arranging these connections?

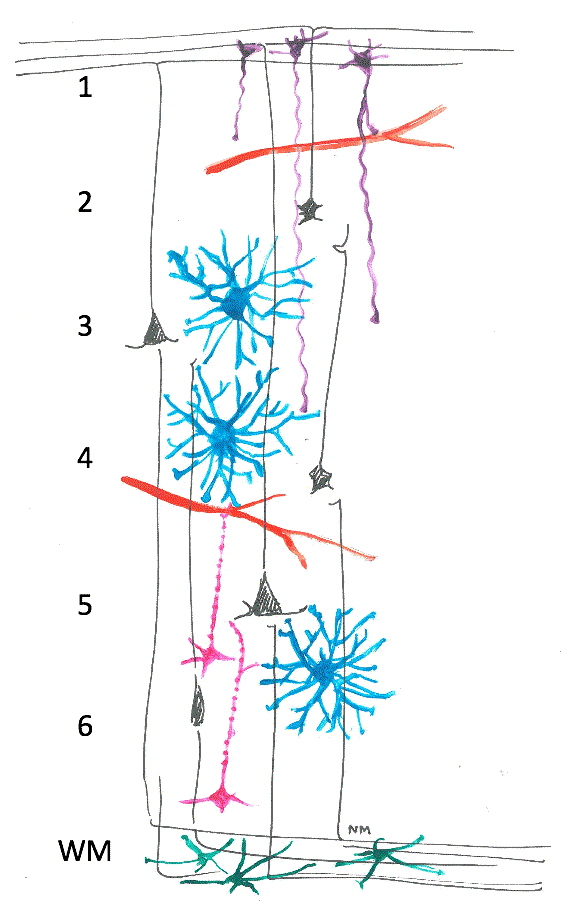

Figure 2. Astrocyte types in human cortical layers. Purple: interlaminar astrocytes (higher primate-specific); blue: protoplasmic astrocytes; pink: varicose projection/polarized astrocytes (higher primate-specific); green: fibrous astrocytes; black: neurons; red: vasculature. Cortical layers are labelled on the left; WM: white matter. Note: relative cell sizes might not be representative of the real proportions. Author’s illustration, pen and acrylic on paper, adapted from Oberheim et al., 2006.

There is a tessellated interconnected net of highly complex cells embracing the entire human nervous system. These cells, unlike neurons that show no significant differences in their morphology or electrical properties among mammals (4–6), develop to their peak in humans (4,7), and are noted to have had particularly large processes in the brain of Albert Einstein (8). These cells orchestrate neuronal positioning and synaptic strength, which is thought to be the basis of memory and intelligence (9–13). And yet only few studies explored their role in consciousness up to date.

Glial glue: not what it says on the tin

Since the discovery of neurons as an important part of the brain in 1740 (14,15), it has been observed that they co-exist side-by-side with their neighbors with an unfortunate umbrella- name ‘glia’ meaning ‘glue’. Although even Cajal noted that some star-shaped cells, or astrocytes, are more prominent in humans, which is likely to have a physiological significance (16), their functions and properties were largely unknown and deemed to be limited to supporting neurons. This ‘glia’ misnomer is still widespread today, even though modern techniques demonstrate that glial cells such as astrocytes and oligodendrocytes are as different from each other as they are from neurons (17). Astrocytes, the ‘star-shaped’ cells, represent the most numerous glial type in mammalian brains with a recently discovered heterogeneity and complexity in structure and function (18,19). They do not exhibit action potentials, but rather propagate calcium waves via interconnecting gap junctions, as well as release and respond to chemical transmitters they often share with neurons, which can exert both excitatory and inhibitory effects on neuronal connections depending on the context (9,20–22). Let us examine their path to such a prominent position.

Evolution of the astrocyte

In evolutionary terms, astrocytes represent a newer invention compared to neurons. Certain animals like hydras and jellyfish rely only on their diffuse nervous systems. Primary glial cells that could share astrocytic features emerge from the same ectodermal origin as neurons alongside nervous system centralization in the earliest bilateral animals – Acoelomorpha flat worms (23). It appears that astrocyte-like cells direct and organize nervous centers throughout evolution, with increasing complexity of neuronal masses being accompanied by development and elaboration of respective astroglia. An interesting example of this trend is brains of elasmobranchs such as sharks and rays. These fish, with intelligence comparable to that of some mammals (24), possess two types of brains: the thinner laminar and thicker elaborated ones. While laminar brains contain only a thin layer of neurons, which cease to migrate far from the neurogenic zones in ventricles and simpler glial types with some astrocytic features, elaborated brains comprise neuronal nuclei alongside multiple astrocytes (23,25). Similarly, in mammals an increase in brain complexity and computational power follows astroglial complexity development (4,23,26).

This evolutionary path is partially recapitulated during organismal development. Although neurons and astrocytes share the parent stem cell type (27,28), neurons are already present at 55 days in utero in humans, while astrocytes take several weeks to mature from neural stem cells extracted at this stage (author’s data). Astrocytes ensure that neurons migrate to their correct locations and form contacts with the appropriate targets (27), and this function persists throughout adulthood (5,11,12).

Human astrocytes

The human brain possesses an unprecedented power of self-reflection and memory in the animal kingdom. While studies comparing relative brain sizes, neuronal types, electrophysiology, and cortical lamination fail to comprehensively explain the origin of consciousness (4–6), neocortex evolution is proposed to involve “largely mysterious…changes in neurogenesis, migration and axon guidance” (13). In accordance with this, astrocytes, which play a role in all of the named processes, present some uniquely hominid features in humans and higher primates, with the peak complexity in humans (Fig. 2).


Figure 2. Astrocyte types in human cortical layers. Purple: interlaminar astrocytes (higher primate-specific); blue: protoplasmic astrocytes; pink: varicose projection/polarized astrocytes (higher primate-specific); green: fibrous astrocytes; black: neurons; red: vasculature. Cortical layers are labelled on the left; WM: white matter. Note: relative cell sizes might not be representative of the real proportions. Author’s illustration, pen and acrylic on paper, adapted from Oberheim et al., 2006.

Interlaminar and varicose projection astrocytes

The higher primates like humans and chimpanzees have two morphological types of astrocytes, which are absent in other species: interlaminar and varicose projection (or polarized) (4,7,29). Interlaminar astrocytes inhabit the top cortical layer, or layer 1, which is lacking neuronal cell bodies and mostly contains synapses. Their shorter processes create a dense network near the pia, while the longer processes extend down through several cortical layers for up to 1 mm and end with a terminal mass enriched in mitochondria (4,30). It is these interlaminar processes that were particularly large in Einstein’s brain (8), increase in length  and number from childhood to adult states (31), and get affected in human brain pathologies like Down’s syndrome and Alzheimer’s disease (32,33). Varicose projection astrocytes also send processes up to a millimeter in length; however, they tend to reside in deeper areas of the cortex in layers 5-6. As their name suggests, their unique processes contain small varicosities every 1 µm (4,7). These long processes of both astrocytic types contact multiple cells as well as vasculature, and may serve as non-neuronal pathways of long-distance communication and integration.

Protoplasmic and fibrous astrocytes

The other two types of astroglia, protoplasmic and fibrous astrocytes, are more common among mammals. Nonetheless, human cells are found to be far from identical to those of experimental animals such as mice and rats. Protoplasmic astrocytes abundantly populate cortical layers 2-6, representing the most common astrocytic type. Unlike other astrocytes, these cells present a cloud, 100-200 µm in diameter in humans, of relatively short bulbous processes around the cell body (4,7). These processes of a single cell, together with synapses they embrace, define an astrocytic domain. They also actively interact with the brain vasculature and contribute to the blood-brain barrier formation (4). While the synaptic density in rats is slightly higher than in humans (6), the size of such astrocytic domains is disproportionally increased in the human brain. Human protoplasmic astrocytes extend ten times more processes, exhibit a 2.55-fold increase in diameter, a 27-fold increase in volume, and a more than 20-fold increase in the number of interacting synapses in comparison with their respective rodent counterparts (4,7) (Fig. 3). Functionally, human astrocytes transmit calcium signals at least 5 times more rapidly than those in mice (7). Interestingly, protoplasmic astrocytes do not share the territories they reign. They are spaced evenly throughout the cortex with only 4.6% of a particular astrocytic domain volume being shared with its neighbour in mice (34). Fibrous astrocytes are located in the white matter and lack domain organisation. These cells show the least number of differences between species, albeit their size being increased in humans (7). Since the white matter lacks synapses, astrocytes residing in this area represent the most simple and homogenous type, which is likely to fulfil its traditionally ascribed role of metabolic support.

Astrocyte complexity and memory formation

There is some exciting evidence that increased astrocyte number and complexity corresponds to increased information processing and storage. In addition to the evolutionary studies, ontogenesis examination points in the same direction. For instance, neuronal numbers are attained at birth, and synaptic pruning constitutes an important part of brain maturation (35,36). In contrast, astroglial differentiation enhances with development and contributes to brain growth (37). Moreover, an enriched environment provokes a rise in astrocyte/neuron ratio beneficial for the nervous system regeneration (38,39). However, until recently, no studies could resolve a problem of correlation not necessarily implying causation. Two prominent publications in Cell shed some light on this issue. In 2013, Han and colleagues managed to substitute a large population of astrocytes in the mouse brain with human cells (40). In their study, human glial progenitors successfully integrated in the host and formed functional gap junctions with indigenous rodent astrocytes, while maintaining their human size and complexity. The resulting chimaeric mice outperformed their littermates in a range of memory tests, including Barnes maze navigation and object-location memory.

In addition, long-term potentiation at synapses in the hippocampus, which serves as a marker of memory formation, was intensified. This study, albeit elegant and convincing, does not compare the effects of astrocytes to those of neurons on memory formation. A good example of a paper that provides such comparison is a 2012 publication that investigates roles of astroglial and neuronal cannabinoid receptors in memory impairment (41). Even though neurons with the absent CB1 receptors still show signs of long-term depression in the mouse hippocampus following an exposure to exogenous cannabinoids, deletion of the astrocytic CB1 receptors completely abolishes cannabinoid-mediated synaptic weakening. This highlights the importance of astrocytes in the normal synaptic homeostasis and memory storage.

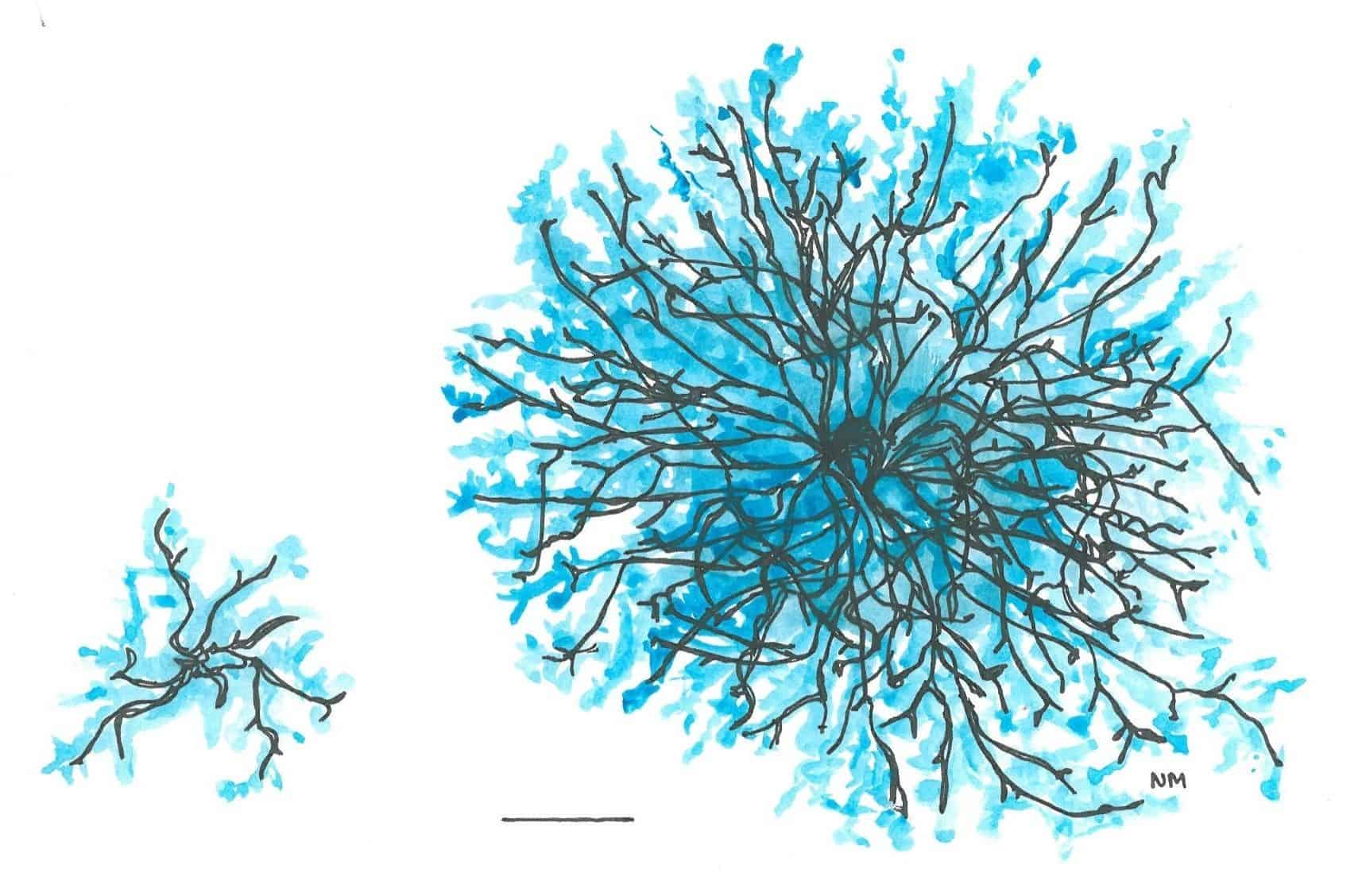

Figure 3. Relative sizes of rodent and human protoplasmic astrocytes in vivo. Left: rodent astrocyte; right: human astrocyte. Glial fibrillary acidic protein intermediate filaments are shown in black, blue represents the complexity of small bulbous processes revealed by the diolistic labelling. Scale bar: 20 µm. Author’s illustration, pen and acrylic on paper, adapted from Oberheim et al., 2009.

Neurocentric vs astrocentric

It is reasonable to ask why brain science was neurocentric for so long. The very name ‘nervous system’ shows a biased view of the brain cell hierarchy. The main explanation is that neurons have an easily recognisable morphology and provide anatomically obvious means of communication between the brain and the outside world. This led to a blossoming of the neuron theory in the 19th century (15) alongside development of appropriate imaging techniques. Additionally, neurons offer a simple and discrete output in the form of action potentials. Hodgkin and Huxley conducted their ground-breaking electrophysiology experiments, which allowed them to tap into the mechanisms of action potential generation, for which they won a Nobel prize in 1963. In contrast, we are only at the dawn of a technique development that would allow us to understand subtler functions of astrocytes. While our understanding of neuronal morphology has hardly progressed since Cajal, it turns out that astrocytes are much more complicated than first thought. An intermediate filament called glial fibrillary acidic protein (GFAP), which was long assumed to be the marker of cells of astroglial lineage, proves to occupy only 15% of the total astrocyte volume (34) (Fig. 3). Only relatively recent studies attempted to use diolistic labelling to categorise astrocytic morphology (4,7). Furthermore, subsets of GFAP-negative astrocytes have been discovered (42), making researchers reconsider the use of cell markers and terminology.

Importantly, because neurons have similar properties in humans and common experimental animals such as rodents, Drosophila, or C. elegans, while astrocytes show a greater difference, exploration of the human-specific astrocytic features that might be absent in simpler animals is less trivial. One of the first papers discussing potential glial contribution to neuronal functions was published in 1960 (43), which for the first time proposed that glia might indeed support neurons, but “in addition it would somehow ‘tell’ the neuronal masses what they are supposed to do”, offering a comparison to a computer program that commands its digital units to follow specific instructions. Potentially, development of a computer technology was pivotal in this mental shift, allowing to regard neurons as wires and hardware, and astrocytic tessellations as a higher-order software making sense of the neuronal input. The astrocentric hypothesis of consciousness was therefore proposed by Robertson, and reviewed by Crick among others, in the early 21st century (44). There is a great potential that future experiments will provide it with more support.

Therapeutic significance of astrocyte research

Other than answering philosophical questions regarding the nature of consciousness, astrocyte research has practical therapeutic significance. Braak and colleagues observed an alpha- synuclein immunoreactivity in astrocytes that progresses in accordance with the neuronal pathology in Parkinson’s disease (45); astrocytes display metabolic and morphologic alterations in beta-amyloid and tau pathologies such as Alzheimer’s disease (33,46,47), as well as in Down’s syndrome (32,48) and schizophrenia (49) to give a few examples. There is a possibility that the astrocytic pathology is not a bystander or a passive consequence, but rather an active player in some or all of these disorders, so that understanding the astroglial pathology or astrocyte neuroprotective functions could ameliorate the disease progression.  Some emerging therapies are indeed addressing this issue. For example, transplanting a subset of astrocytes into the striatum of rats successfully alleviates some pathological changes in a model of Parkinson’s disease (50), providing an alternative to neural transplants.

With no doubt, new technologies will unravel more mysteries of the star-shaped cells. Although many functions of astrocytes are still unknown, new research offers a great promise.

References

  1. Crick F, The recent excitement about neural networks. [Internet]. Vol. 337, Nature (1989) p. 129–32. Available from:
    http://www.nature.com.ezp-prod1.hul.harvard.edu/nature/journal/v337/n6203/pdf/337129a0.pdf\npapers3://publication/uuid/79BF4C49-C77F-4046-968C-9B9A30CE0811
  2. Taylor JG, Neural networks for consciousness. Vol. 10, Neural Networks (1997) p. 1207–25
  3. Silva AJ, Zhou Y, Rogerson T, et al., Molecular and cellular approaches to memory allocation in neural circuits. Science (80-) (2009) 326 (October):391–5
  4. Oberheim NA, Wang X, Goldman S, et al., Astrocytic complexity distinguishes the human brain. Trends Neurosci. (2006) 29 (10):547–53
  5. Robertson JM, Astrocytes and the evolution of the human brain. Med Hypotheses (2014) 82 (2):236–9
  6. DeFelipe J, Alonso-Nanclares L and Arellano JI, Microstructure of the neocortex: Comparative aspects. Vol. 31, Journal of Neurocytology (2002) p. 299–316
  7. Oberheim NA, Takano T, Han X, He W, Lin JHC, Wang F, et al., Uniquely Hominid Features of Adult Human Astrocytes. J Neurosci [Internet] (2009) 29 (10):3276–87. Available from:
    http://www.jneurosci.org/cgi/doi/10.1523/JNEUROSCI.4707-08.2009
  8. Colombo JA, Reisin HD, Miguel-Hidalgo JJ, et al., Cerebral cortex astroglia and the brain of a genius: A propos of A. Einstein’s. Vol. 52, Brain Research Reviews (2006) p. 257–63
  9. Perea G, Navarrete M, Araque A, Tripartite synapses: astrocytes process and control synaptic information. Vol. 32, Trends in Neurosciences (2009) p. 421–31
  10. Min R, Santello M, Nevian T,. The computational power of astrocyte mediated synaptic plasticity. Front Comput Neurosci. (2012) 6 (November):1–15
  11. Gengatharan A, Bammann RR, Saghatelyan A, The Role of Astrocytes in the Generation, Migration, and Integration of New Neurons in the Adult Olfactory Bulb. Front Neurosci [Internet] (2016) 10 (April):149. Available from: http://www.pubmedcentral.nih.gov/articlerender.fcgi?artid=4820452&tool=pmcentrez&rendertype=abstract
  12. Bozoyan L, Khlghatyan J, Saghatelyan A, Astrocytes control the development of the migration-promoting vasculature scaffold in the postnatal brain via VEGF signaling. J Neurosci        [Internet] (2012) 32 (5):1687–704. Available from: http://www.jneurosci.org/content/32/5/1687
  13. Striedter GF, Precis of principles of brain evolution. Behav Brain Sci [Internet] (2006) 29:1–36. Available from: http://philpapers.org/rec/GEOPOP
  14. Golgi C, The neuron doctrine-theory and facts. Nobel Lect Physiol or Med [Internet] (1906) 29. Available from: http://www.systems.neurosci.info/Cortex/golginp.pdf
  15. Fodstad H, The neuron theory. In: Stereotactic and Functional Neurosurgery. (2002) p. 20–4
  16. Navarrete M and Araque A, The Cajal school and the physiological role of astrocytes: a way of thinking. Front Neuroanat [Internet] (2014) 8 (May):33. Available from:     http://www.pubmedcentral.nih.gov/articlerender.fcgi?artid=4032926&tool=pmcentrez &rendertype=abstract
  17. Cahoy JD, Emery B, Kaushal A, et al., A transcriptome database for astrocytes, neurons, and oligodendrocytes: a new resource for understanding brain development and function. J     Neurosci [Internet] (2008);28 (1):264–78. Available from: http://www.ncbi.nlm.nih.gov/pubmed/18171944
  18. Zhang Y and Barres BA, Astrocyte heterogeneity: An underappreciated topic in neurobiology. Vol. 20, Current Opinion in Neurobiology (2010) p. 588–94
  19. Khakh BS and Sofroniew MV, Diversity of astrocyte functions and phenotypes in neural circuits. Nat Neurosci [Internet] (2015) 18 (7):942–52. Available from:  http://dx.doi.org/10.1038/nn.4043
  20. Fiacco TA, McCarthy KD, Astrocyte calcium elevations: Properties, propagation, and effects on brain signaling. Vol. 54, GLIA (2006) p. 676–90
  21. Fiacco TA, Agulhon C, McCarthy KD, Sorting Out Astrocyte Physiology from Pharmacology. Annu Rev Pharmacol Toxicol [Internet] (2009) 49 (1):151–74. Available from:      http://www.annualreviews.org/doi/abs/10.1146/annurev.pharmtox.011008.145602
  22. Pascual O, Casper KB, Kubera C, et al. Astrocytic Purinergic Signaling Coordinates Synaptic Networks. Science (80-) [Internet] (2005) 310 (5745):113–6. Available from:  http://www.sciencemag.org/cgi/doi/10.1126/science.1116916
  23. Verkhratsky A and Butt A, Glial Physiology and Pathophysiology. Glial Physiology and Pathophysiology. (2013)
  24. Ari C and D’Agostino DP, Contingency checking and self-directed behaviors in giant manta rays: Do elasmobranchs have self-awareness? J Ethol [Internet] (2016) 34 (2):167–74.        Available from: http://dx.doi.org/10.1007/s10164-016-0462-z
  25. Ari C and Kalman M, Evolutionary changes of astroglia in Elasmobranchii comparing to Amniotes: A study based on three immunohistochemical markers (GFAP, S-100, and glutamine        synthetase). Brain Behav Evol (2008) 71 (4):305–24
  26. Reichenbach A, Glia:neuron index: review and hypothesis to account for different values in various mammals. Glia [Internet] (1989) 2 (2):71–7. Available        from: http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?cmd=Retrieve&db=PubMed&dopt=Cit ation&list_uids=2524444ttp://www.ncbi.nlm.nih.gov/entrez/query.fcgi?         cmd=Retrieve&db=PubMed&dopt=Cit ation&list_uids=2524444
  27. Ihrie RA and Alvarez-Buylla A, Cells in the astroglial lineage are neural stem cells. Vol. 331, Cell and Tissue Research (2008) p. 179–91
  28. Doetsch F, The glial identity of neural stem cells. Nat Neurosci [Internet] (2003) 6 (11):1127–34. Available from:                                                                          http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?cmd=Retrieve&db=PubMed&dopt=Citation&list_uids=14583753
  29. Colombo JA and Reisin HD, Interlaminar astroglia of the cerebral cortex: A marker of the primate brain. Brain Res (2004) 1006 (1):126–31
  30. Colombo JA, Gayol S, Yáñez A et al., Immunocytochemical and electron microscope observations on astroglial interlaminar processes in the primate neocortex. J Neurosci Res. (1997) 48 (4):352–7
  31. Colombo JA, Lipina S, Yáñez A, et al., Postnatal development of interlaminar astroglial processes in the cerebral cortex of primates. Int J Dev Neurosci (1997) 15 (7):823–33
  32. Colombo JA, Reisin HD, Jones M, et al., Development of interlaminar astroglial processes in the cerebral cortex of control and Down’s syndrome human cases. Exp Neurol. (2005) 193 (1):207–17
  33. Colombo JA, Quinn B and Puissant V, Disruption of astroglial interlaminar processes in Alzheimer’s disease. Brain Res Bull (2002) 58 (2):235–42
  34. Ogata K and Kosaka T, Structural and quantitative analysis of astrocytes in the mouse hippocampus. Neuroscience (2002) 113 (1):221–33
  35. Chechik G, Meilijson I and Ruppin E, Neuronal regulation: A mechanism for synaptic pruning during brain maturation. Neural Comput [Internet] (1999) 11 (8):2061–80. Available from: http://www.ncbi.nlm.nih.gov/pubmed/10578044
  36. Paolicelli RC, Bolasco G, Pagani F, et al., Synaptic pruning by microglia is necessary for normal brain development. Science [Internet] (2011) 333 (6048):1456–8. Available from:  http://www.ncbi.nlm.nih.gov/pubmed/21778362
  37. Khozhai LI, Formation of the astroglia in the mouse neocortex after temporary prenatal blockade of serotonin synthesis. Neurosci Behav Physiol (2006) 36 (3):275–8
  38. Komitova M, Perfilieva E, Mattsson B, et al., Enriched environment after focal cortical ischemia enhances the generation of astroglia and NG2 positive polydendrocytes in adult rat        neocortex. Exp Neurol (2006) 199 (1):113– 21
  39. Nilsson Mand Pekny M, Enriched environment and astrocytes in central nervous system regeneration. Vol. 39, Journal of Rehabilitation Medicine (2007) p. 345–52
  40. Han X, Chen M, Wang F, et al., Forebrain engraftment by human glial progenitor cells enhances synaptic plasticity and learning in adult mice. Cell Stem Cell (2013)12 (3):342–53
  41. Han J, Kesner P, Metna-Laurent M, et al., Acute cannabinoids impair working memory through astroglial CB1 receptor modulation of hippocampal LTD. Cell (2012) 148 (5):1039–50
  42. Walz W and Lang MK, Immunocytochemical evidence for a distinct GFAP-negative subpopulation of astrocytes in the adult rat hippocampus. Neurosci Lett (1998) 257 (3):127–30
  43. Galambos R, A glia-neural theroy of brain function. Proc Natl Acad Sci USA [Internet] (1960) 47:129–36. Available from: http://www.ncbi.nlm.nih.gov/pmc/articles/PMC285256/
  44. Robertson JM, The astrocentric hypothesis: Proposed role of astrocytes in consciousness and memory formation. J Physiol Paris (2002) 96 (3-4):251–5
  45. Braak H, Sastre M and Del Tredici K, Development of α-synuclein immunoreactive astrocytes in the forebrain parallels stages of intraneuronal pathology in sporadic Parkinson’s       disease. Acta Neuropathol (2007) 114 (3):231–41
  46. Yan LJ,  Xia M and Ran Chen ZC. Metabolic Dysfunction of Astrocyte: An Initiating Factor in Beta amyloid Pathology? Aging Neurodegener (2013) 1 (1):7– 14
  47. Dabir D V, Robinson MB, Swanson E, et al., Impaired glutamate transport in a mouse model of tau pathology in astrocytes. J Neurosci. (2006) 26 (2):644–54
  48. Griffin WS, Sheng JG, McKenzie JE, et al., Life-long overexpression of S100beta in Down’s syndrome: implications for Alzheimer pathogenesis. Neurobiol Aging [Internet] (1998) 19        (5):401–5. Available from: http://www.pubmedcentral.nih.gov/articlerender.fcgi?artid=3833593&tool=pmcentrez &rendertype=abstract
  49. Martins-De-Souza D, Lebar M, Turck CW, Proteome analyses of cultured astrocytes treated with MK-801 and clozapine: Similarities with schizophrenia. Eur Arch Psychiatry Clin Neurosci (2011) 261 (3):217–28
  50. Proschel C, Stripay JL, Shih CH, et al., Delayed transplantation of precursor cell-derived astrocytes provides multiple benefits in a rat model of Parkinsons. EMBO Mol Med. (2014) 6 (4):504–18
